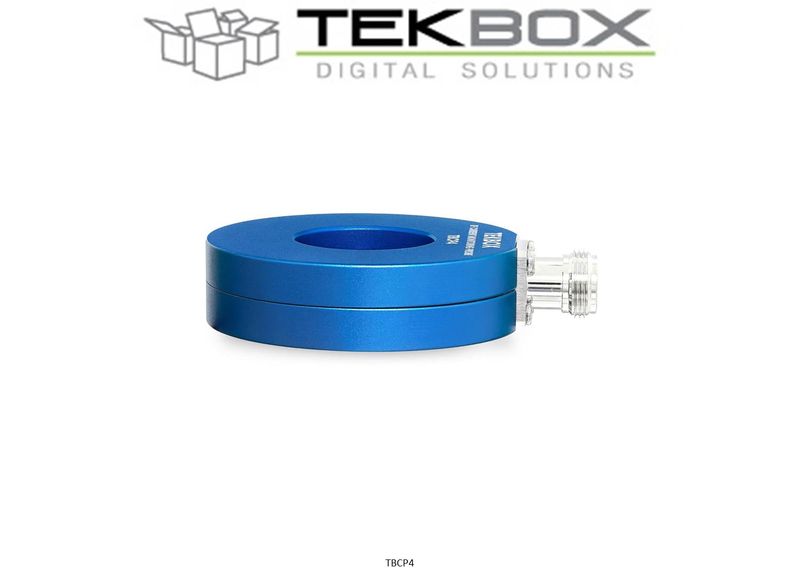

Current Monitoring Probe, fixed aperture 32mm, 10 kHz to 500 MHz
Stock Code:
Item: TBCP4-500
Description
The TBCP4-500 is a fixed aperture RF current monitoring probe, it has a very flat response with a 3dB bandwidth of 500 MHz and is characterized and usable over the frequency range from 10kHz to 500 MHz. The aperture of the RF current monitoring probe is 32 mm. Its transfer impedance is close to 16 dB Ohm in the range from 400 kHz to 500 MHz.
Tekbox supplies an optional extra calibration fixture corresponding with the TBCP4 series of fixed aperture current probes.
Manufacturer:
TEKBOX
Model Number:
TBCP4-500
Warranty:
1 YEAR
Available:
2 WEEKS
$931.00 ex GST
$1,070.65 inc GST
