Current Monitoring Probe, snap on aperture 32mm, 30 kHz to 800 MHz

Description

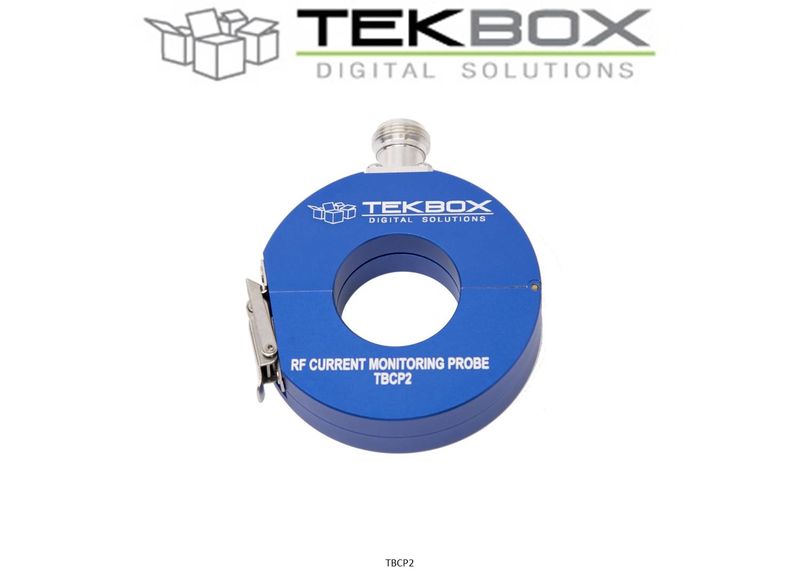

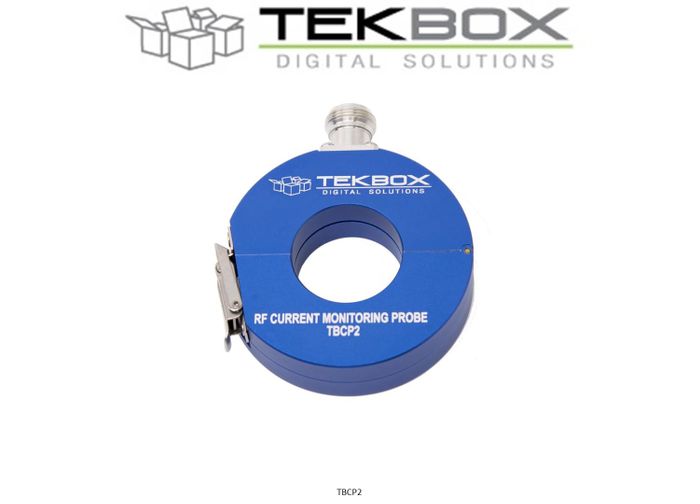

The TBCP2-750 is a snap-on RF current monitoring probe. The probe has a very flat response with a 3dB bandwidth of 750 MHz and is characterized over the frequency range from 30kHz to 800 MHz. Upon request, the test protocol can be extended to frequencies down to 1 kHz. The aperture of the RF current monitoring probe is 32 mm. Its transfer impedance is > 15 dB Ohm in the range from 1 MHz to 750 MHz.

Tekbox supplies an optional extra calibration fixture corresponding with the TBCP2 series of snap on current probes.
