Current Monitoring Probe, snap on aperture 32mm, 30 kHz to 600 MHz
Stock Code:
Item: TBCP2-500
Description

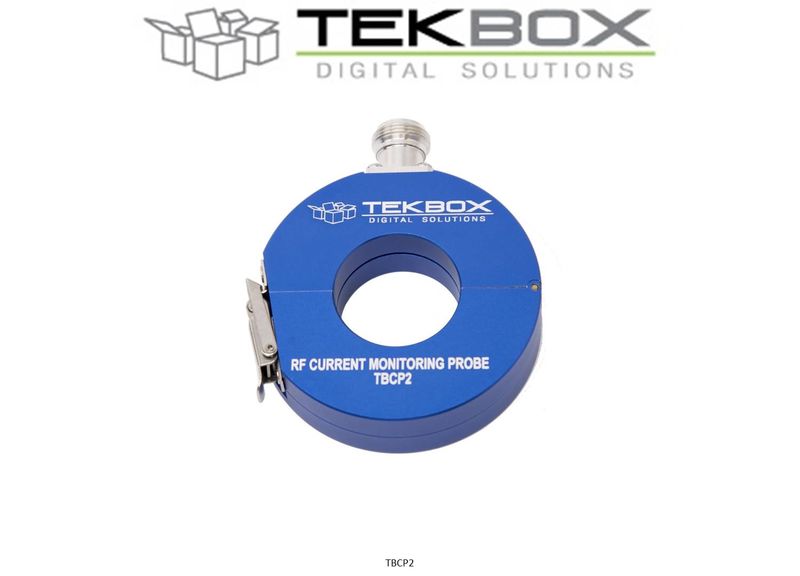

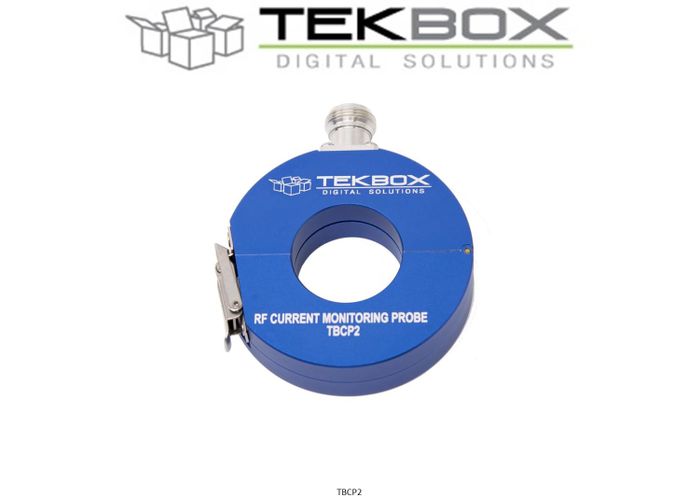

The TBCP2-500 is a snap-on RF current monitoring probe. The probe has a flat response with a 3dB bandwidth of 500 MHz and is characterized over the frequency range from 30kHz to 600 MHz. Upon request, the test protocol can be extended to frequencies down to 1 kHz. The aperture of the RF current monitoring probe is 32 mm. Its transfer impedance is > 15 dB Ohm in the range from 1 MHz to 500 MHz.
Tekbox supplies an optional extra calibration fixture corresponding with the TBCP2 series of snap on current probes.
Manufacturer:
TEKBOX
Model Number:
TBCP2-500
Warranty:
1 YEAR
Available:
2 WEEKS
$1,345.00 ex GST
$1,546.75 inc GST
