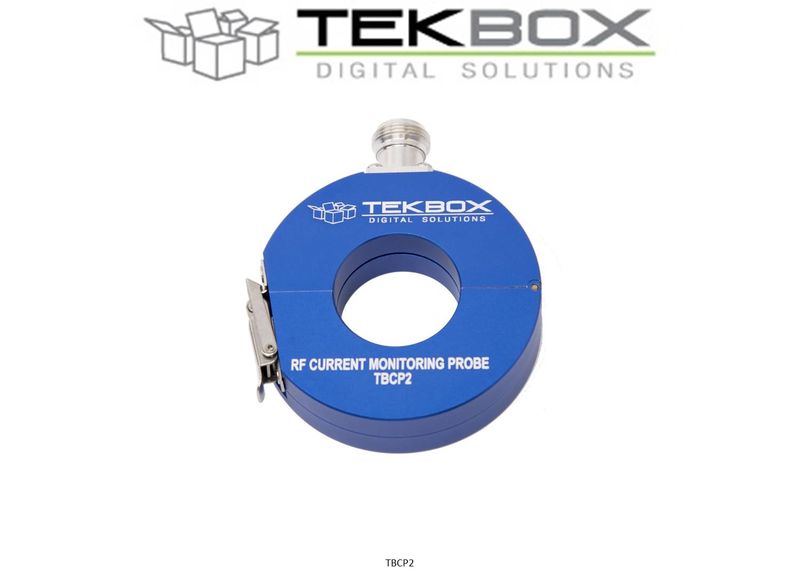

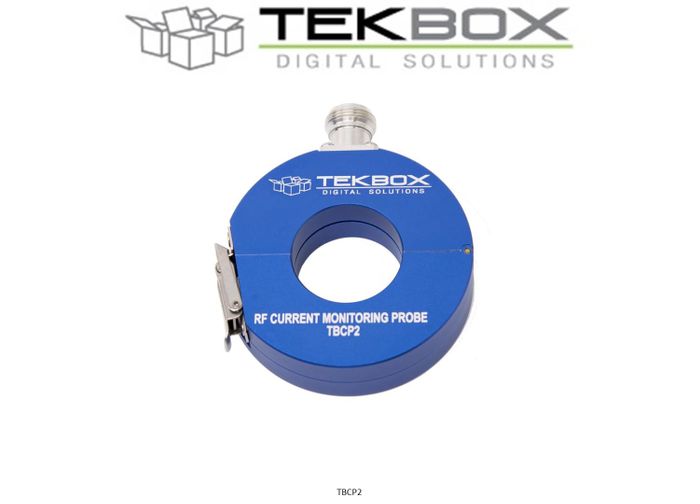

Current Monitoring Probe, snap on aperture 32mm, 30 kHz to 250 MHz
Stock Code:
Item: TBCP2-250
Description
The TBCP2-250 is a snap-on RF current monitoring probe. The probe has a very flat response with a 3dB bandwidth of 250 MHz and is characterized over the frequency range from 30kHz to 300 MHz. Upon request, it can also be supplied with a test protocol covering the frequency range 1 kHz to 350 MHz. The aperture of the RF current monitoring probe is 32 mm. Its transfer impedance is > 12 dB Ohm in the range from 700 kHz to 300 MHz.
Tekbox supplies an optional extra calibration fixture corresponding with the TBCP2 series of snap on current probes.
Manufacturer:
TEKBOX
Model Number:
TBCP2-250
Warranty:
1 YEAR
Available:
2 WEEKS
$1,221.00 ex GST
$1,404.15 inc GST
