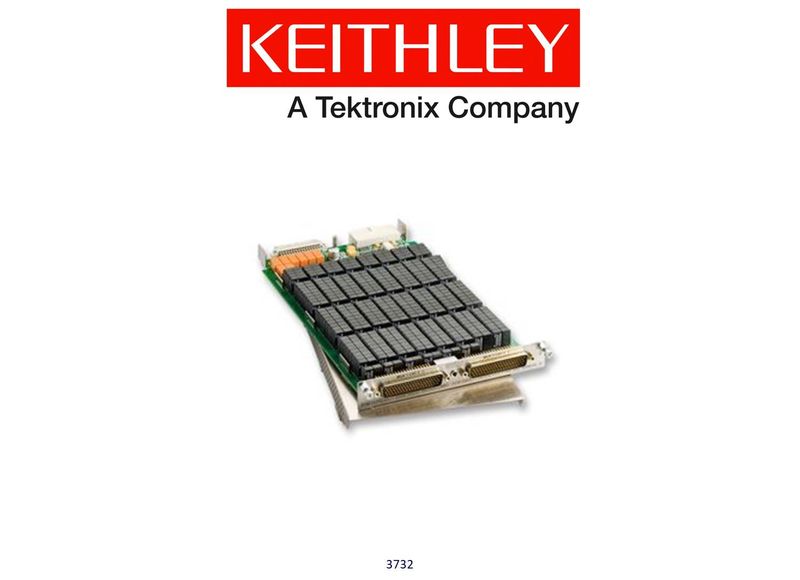

Keithley model 3732 Quad 4x28, Ultra-High Density, Reed Relay Matrix Card
Stock Code:
Item: 3732
Description
The ultra-high density Model 3732 matrix card is comprised of four banks, each with 4 rows by 28 columns of reed relays. This provides 448 single-pole crosspoints for maximum connection versatility in high channel count applications - ideal for I-V testing with Series 2600A System SourceMeter Instruments
* 200V, 1.2A carry or 0.75A switched signal capacity; 15W, 15VA
* Bank configuration relays enable alternative matrix sizes, including:
- Dual 4×56 (1 wire)
- Single 4×112 (1 wire)
- Single 4×56 (2 wire)
* Long life dry reed relays
Manufacturer:
KEITHLEY
Model Number:
3732
Warranty:
1 YEAR
Available:
6 WEEKS
POA
