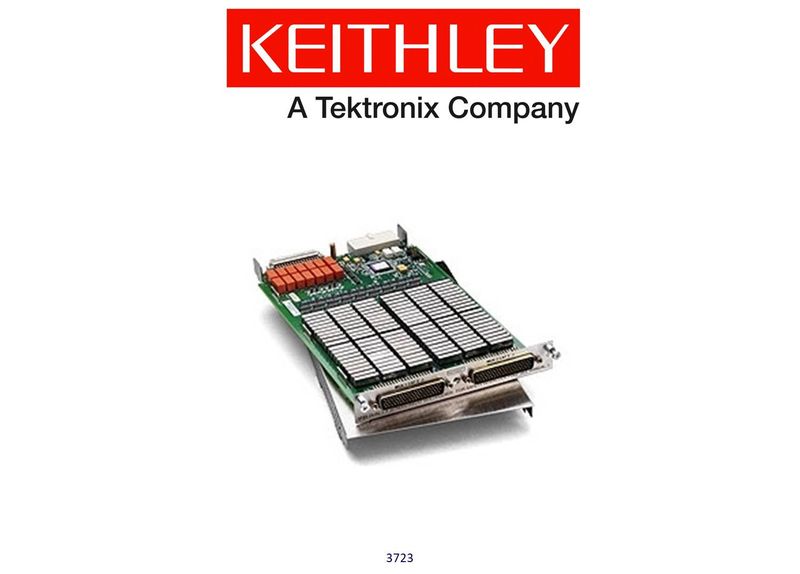

Keithley model 3723 Dual 1x30, High Speed, Reed Relay Multiplexer Card
Stock Code:
Item: 3723
Description
The Model 3723 offers two independent banks of 1×30 two-pole multiplexers - ideal for applications that require a high channel count.
* Can automatically be connected to the Series 3700A mainframe & optional DMM through the analog backplane connection relays
- This connection allows the mainframe to reconfigure the card as a single 1×20 two-pole multiplexer or as a single 1×120 single-pole multiplexer.
- Also enables card-to-card expansion for even larger configurations
* Relay actuation time less than 0.5ms
* Long life dry reed relays
Manufacturer:
KEITHLEY
Model Number:
3723
Warranty:
1 YEAR
Available:
3 WEEKS
POA
